Web Dashboard
sfdt ui starts a local Express server and opens a Salesforce Lightning Design System
dashboard in your browser. It reads log/result files from your project’s logDir (default
logs/) and can run several commands live.
sfdt ui # opens http://localhost:7654
sfdt ui --port 8080 # custom port
sfdt ui --no-open # start without opening the browserWhen installing from source, build the dashboard once with npm run build:gui. The published
npm package already includes a pre-built gui/dist/, so end users don’t need to build it. If
gui/dist/ is missing, sfdt ui shows a build-instructions page instead.
Pages
| Page | What it shows | Data source |
|---|---|---|

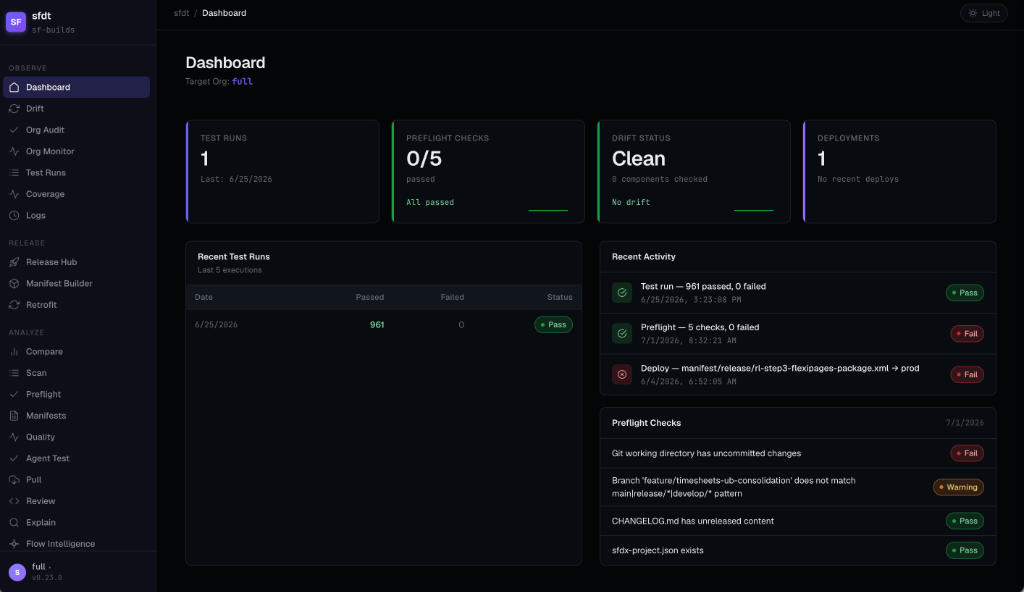

| Dashboard | Summary stat cards: last test run, preflight, drift | preflight-latest.json, drift-latest.json, test-results/ |
| Test Runs | Apex test history with coverage bands; run tests inline | test-results/*.json |
| Preflight | Per-check pass/warn/fail; run preflight inline | preflight-latest.json |
| Drift Detection | Filterable component table (All / Clean / Drift); run inline | drift-latest.json |
| Compare | Source-only / target-only / both; side-by-side XML diff; export package.xml | compare-latest.json |
| Review | AI code-review results across five categories | review-latest.json |
| Explain | AI deployment-log analysis | explain-latest.json |
| Release Hub | Manifest picker, changelog & release-note editing, deploy | manifest/release/, release-notes/, CHANGELOG.md |
| Pull | Smart-delta / preview / full retrieve with live streaming | /api/pull (SSE) |
| Quality | Code/test quality results; stub generator with dry-run preview | quality-latest.json |
| Scan | Full metadata inventory with search & filter | /api/scan |
| Audit | Org health: audit trail, licenses, MFA, unused Apex, API versions | audit-latest.json |
| Monitor | Limits, errors, health score, backup history | monitor-latest.json |
| Flows | Flow health scores, trigger conflicts, subflow graph | /api/flow/quality |
| Manifests | Generated package.xml artifacts — preview & download | manifest/release/*.xml |
| Logs | Searchable log viewer with pagination and raw output | logs/* |
| Dependencies | D3 force-directed component dependency graph | /api/dependencies |
| Settings | View/edit config; initialize a project from the GUI | .sfdt/config.json |
| Coverage | Apex coverage trend across runs | test-results/ |
| Dependency Check | Preflight dependency validation (missing/broken refs) | /api/dependencies/preflight |
Data appears automatically after running the corresponding CLI commands (sfdt test,
sfdt preflight, sfdt drift, …) that write JSON result files.
Live command runners
The Test Runs, Preflight, Drift, Compare, and Pull pages have Run buttons that trigger the underlying command over a Server-Sent Events stream — output appears line-by-line in real time, exactly like running the CLI.
AI chat drawer
The toolbar’s Ask AI button opens a sliding chat panel. Pages with relevant output (Review, Explain, Drift, Preflight) pre-fill the chat with that context so you can ask follow-ups without copy-pasting.
Security
The dashboard is local-only and hardened against page-driven attacks:
- Binds to
127.0.0.1— never exposed to the network. - Per-launch auth token prevents unauthorized access to a running process.
- CSRF protection — all mutating routes require an
X-SFDT-CSRFheader. - Read-only AI sandbox — the AI chat’s tool access is restricted to
Read,Grep,Glob(no Bash/Write/Edit), so a prompt injection in page context can’t drive tool execution. - Log redaction at ingest — secrets are redacted before reaching the in-memory buffer or the live SSE stream.
The same bridge endpoints the dashboard exposes are what the Chrome extension talks to — see The Bridge.
